Membrane

Reinforced Membrane

Introduce World Best Durable Reinforced Hollowfiber Membrane

  • High Safety

    • High tensile properties
    • High peeling strength
    • Resistance to cleaning chemicals

  • High Performance

    • High Permeability& Rejection rate
    • Low fouling properties
    • High integrity

  • Easy Operation

    • Easy to storage in dry condition
    • Easy handling & maintenance
    • Reduce Life Cycle Cost
Hifil acquired Industrial Membrane Division from Kolon in 2020, creating synergy with Hifil’s experience.
Cleanfil-S products can be applied to water supply, wastewater, reused water, using its high performance & high durability.
Hollow fiber PVDF membranes have high tensile strength, peeling strength, which prevents breakage of membrane during operation. PVDF is also highly resistant to chemicals, applicable to various chemical environments.
Its pore sizes are uniform, increasing the screening performance & water penetration.
Cleanfil®-S
Single Layer Membrane

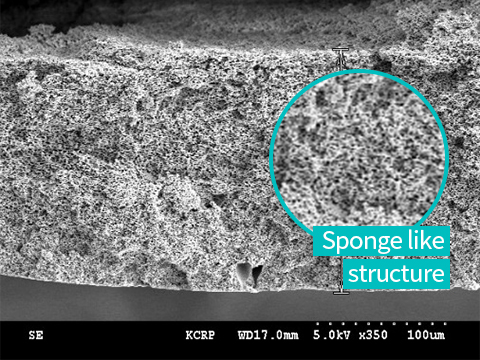

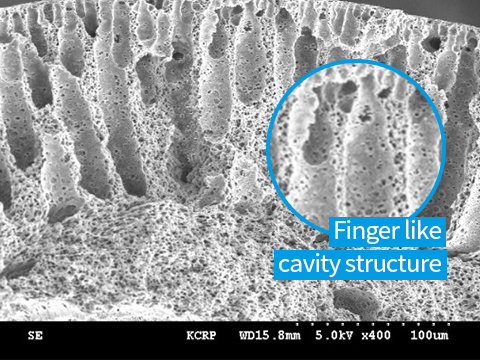

Membrane layer
structure

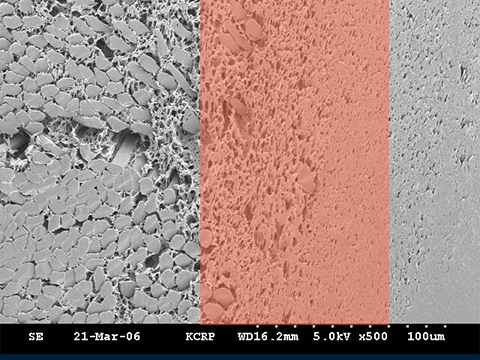

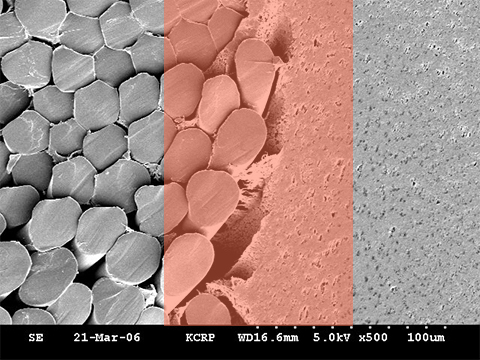

Interface between
membrane and braid

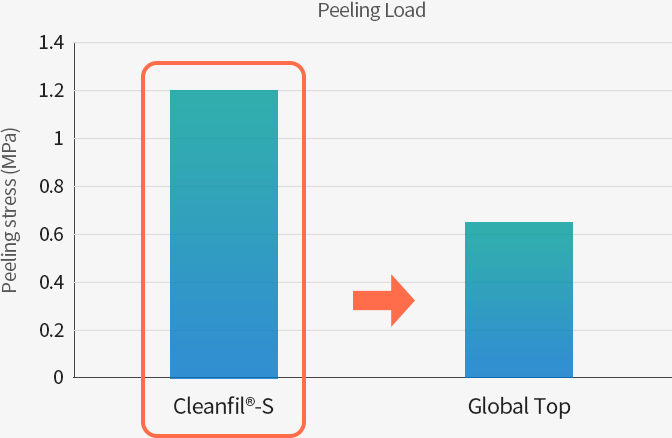

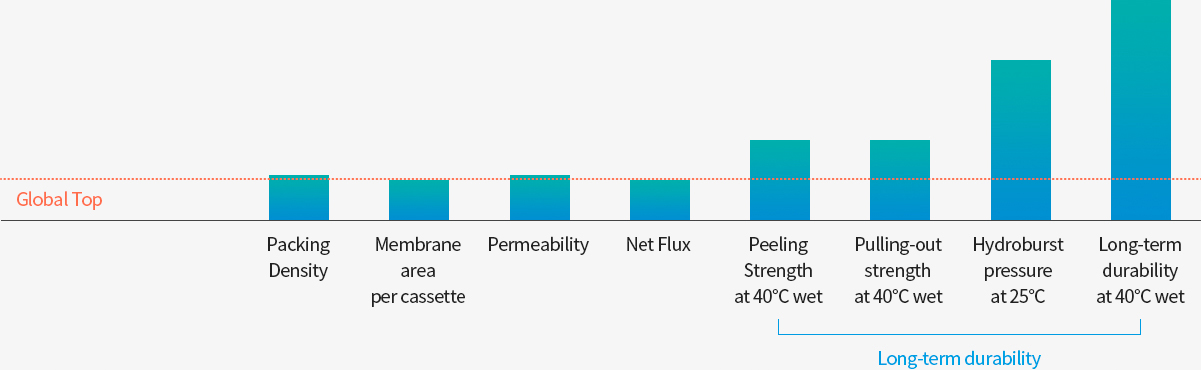

Reducing Lifecycle Cost

Cleanfil-S hollow fiber membrane made using our unique membrane manufacturing technology and has the highest peeling strength in the world.
This has excellent peel-off strength and other physical damage.

Cleanfill-S module type

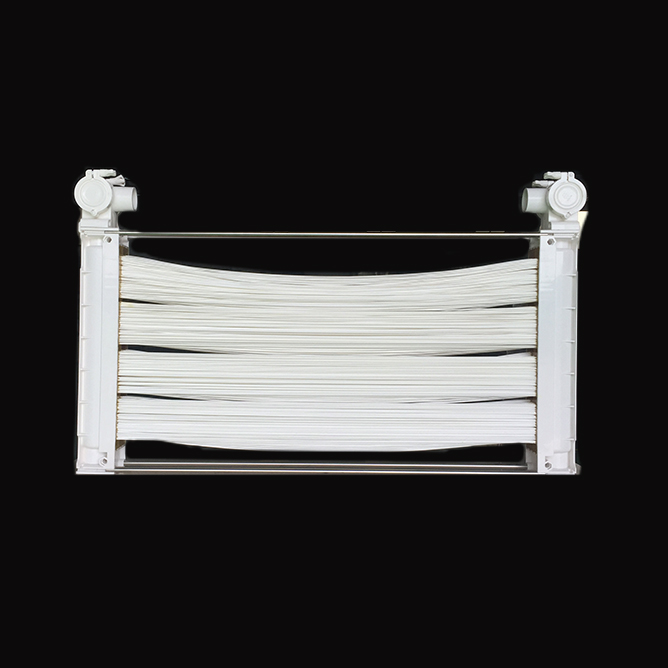

  • CLF-S20H-20C

    Model CLF-S20H-20C
    Surface area 20㎡
    Material Membrane : PVDF, Braid : PET
    Pore Size 0.1um
    Design Flux 15~70LMH
    Case material ABS
    Dimension 1,185(L) x 105(W) x 626(H)
    Weight Dry : 13.8kg, Wet : 18.0kg
    Max surface area Per a cassette 600㎡

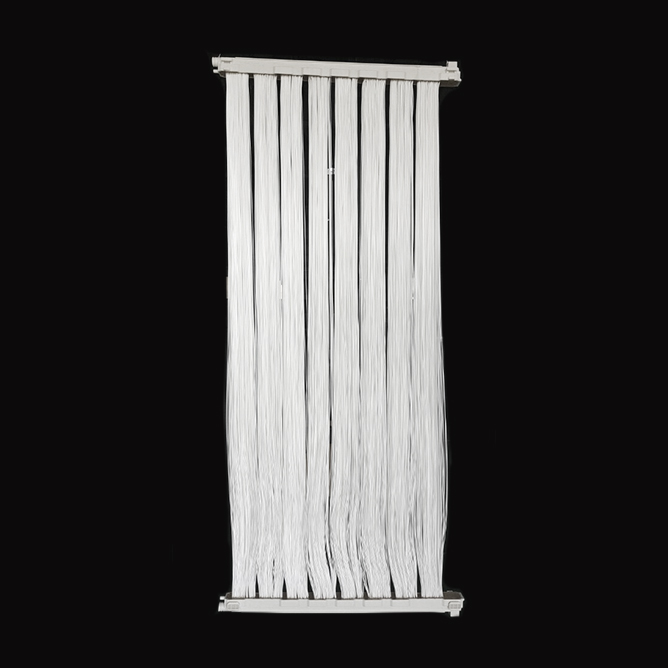

  • CLF-S30V-36B

    Model CLF-S30V-36B
    Surface area 30㎡ & 36㎡
    Material Membrane : PVDF, Braid : PET
    Pore Size 0.1um
    Design Flux 15~70LMH
    Case material PVC
    Dimension 1,060(L) x 44(W) x 2,357(H)
    Weight
    • 30㎡, Dry : 14.1kg, Wet : 20.4kg
    • 36㎥, Dry : 16.3kg, Wet : 22.5kg
    Max surface area Per a cassette 720㎡

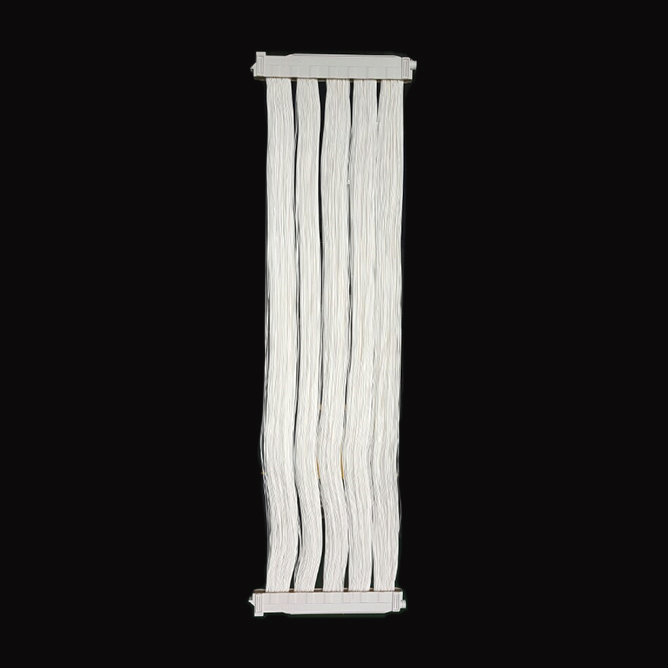

  • CLF-S40V-22A

    Model CLF-S40V-22A
    Surface area 10㎡ & 22㎡
    Material Membrane : PVDF, Braid : PET
    Pore Size 0.1um
    Design Flux 15~70LMH
    Dimension PVC
    Weight
    • 10㎡ : 699(L) x 50.5(W) x oooo(H)
    • 22㎡ : 699(L) x 50.5(W) x 2,345(H)
    Weight
    • 10㎡, Dry : 6.7kg, Wet : 10.9kg
    • 22㎥, Dry : 9.2kg, Wet : 13.8kg
    Max surface area Per a cassette
    • 1,520㎡
    • (Can be made according to client’s needs.)
